Rożek ochronny (2600)
Materiał: stal cynkowana ogniowo
Części złączne: cynkowane ogniowo
Zastosowanie: Do izolatorów kompozytowych
Pobierz kartę produktu

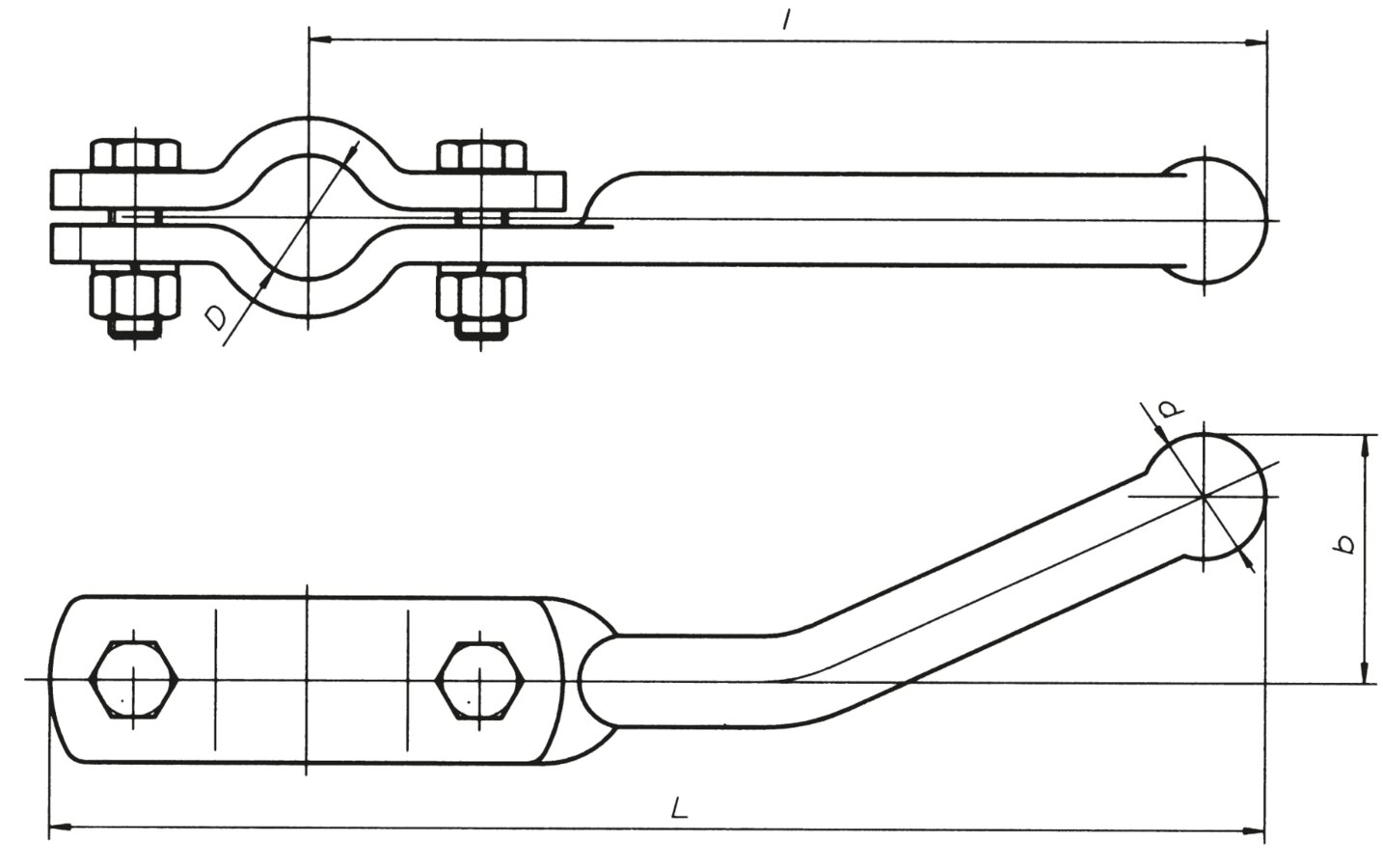

| Wyróżnik ZEMEX | Wyróżnik handlowy | D [mm] | d [mm] | L [mm] | l [mm] | b [mm] | Un [kV] | In [kA] | tz [s] | Masa [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| 2600-25/90 | 32002 | 25 | 30 | 290 | 230 | 90 | 110 | 25 | 1,0 | 1,20 |
| 2600-25/60 | 32003 | 25 | 30 | 290 | 230 | 60 | 110 | 25 | 1,0 | 1,20 |
| 2600-25/110 | 32004 | 25 | 30 | 290 | 230 | 110 | 110 | 25 | 1,0 | 1,38 |
| 2600-30/60 | 32005 | 30 | 30 | 290 | 230 | 60 | 110 | 25 | 1,0 | 1,30 |
| 2600-35/90 | 32010 | 35 | 30 | 290 | 230 | 90 | 110 | 25 | 1,0 | 1,48 |
| 2600-38/80 | 32014 | 38 | 30 | 300 | 240 | 80 | 110 | 25 | 1,0 | 1,50 |
| 2600-44/40 | 32020 | 44 | 30 | 320 | 255 | 40 | 110 | 25 | 1,0 | 1,44 |
| 2600-46/75 | 32025 | 46 | 30 | 305 | 240 | 75 | 110 | 25 | 1,0 | 1,70 |
